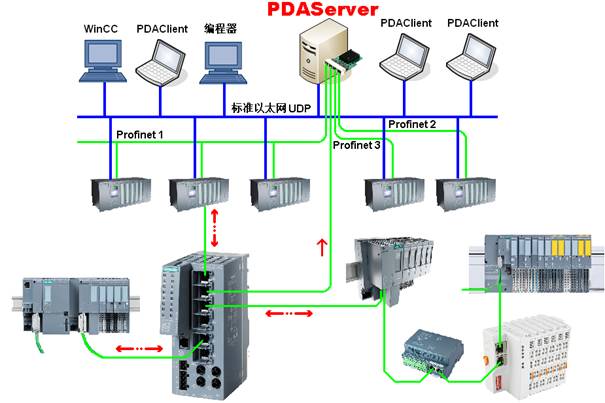

1 S7-1500 and slave drop data collection scheme The S7-1500 series PLC can achieve ms level data acquisition through Profinet(PDAServer as multiple PN slaves) or standard ethernet UDP, the PN switch may directly forward all slave data to the PDAServer, the system scheme is shown in the following figure.
