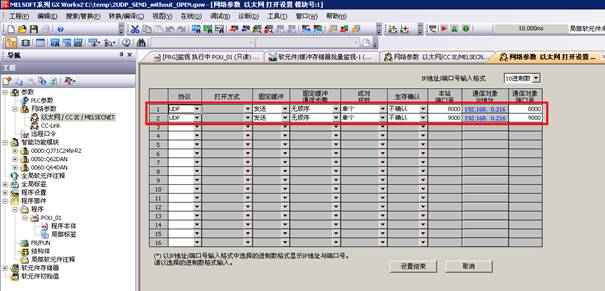

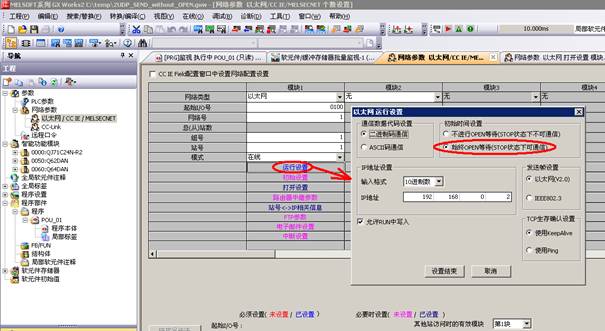

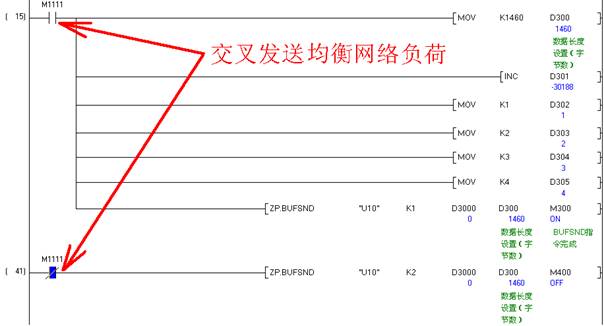

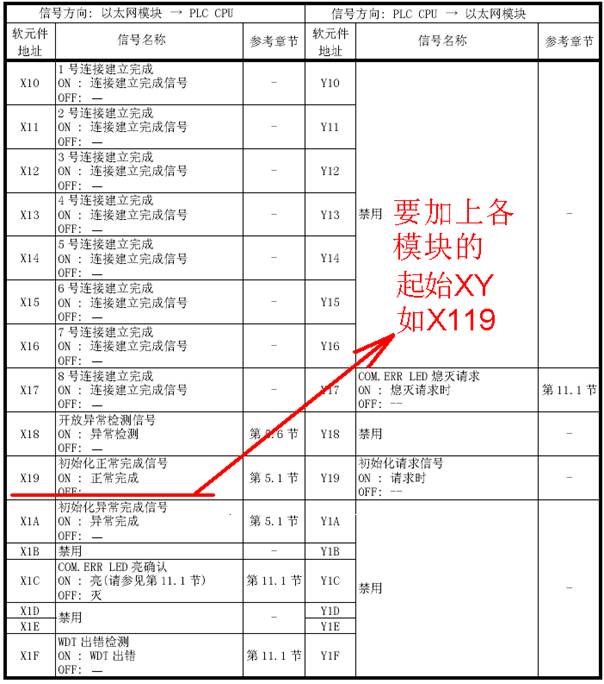

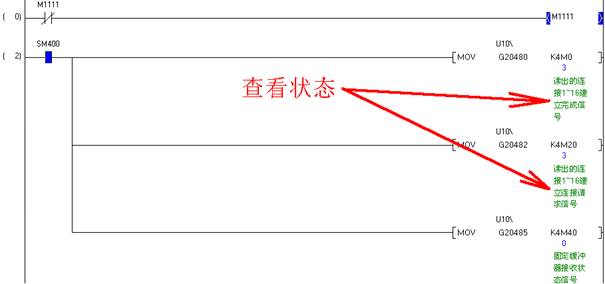

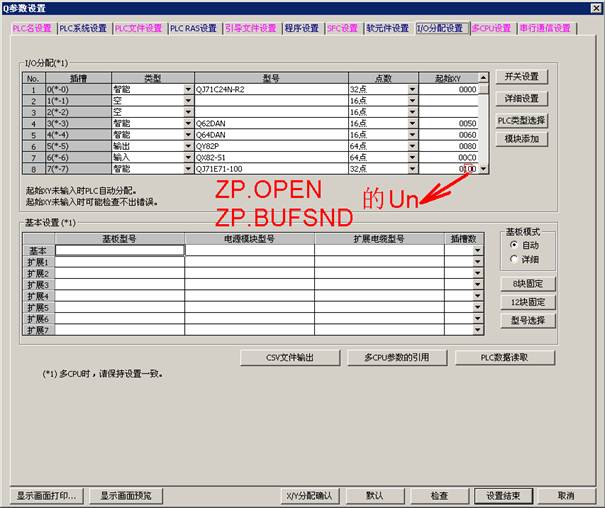

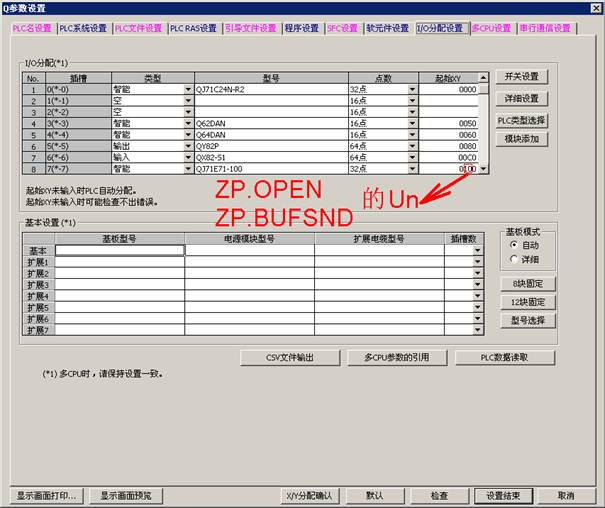

41 MITSUBISHI Q-Series UDP Relevant signals for Ethernet module initialization. This section explains the input/output signals of the Ethernet module. Regarding the input/output signal allocation shown in the table below, it is assumed that the Ethernet module is installed in slot 0 of the substrate. The soft component address starting from X represents the input signal from the Ethernet module to the PLC CPU, while the soft component address starting from Y represents the output signal from the PLC CPU to the Ethernet module. The following table represents the input/output signals sent from the PLC CPU and the input/output signals sent to the PLC CPU. The following example establishes two send connections, each sending 1460 bytes. After hardware configuration or network configuration changes, the CPU needs to be RESET before running.
